Hydraulic Fracturing in Tight Reservoirs
Written by Dr.Nabil Sameh
Engineering Principles, Operational Strategies, and Field Applications
---
1. Introduction
Hydraulic fracturing has revolutionized the development of unconventional petroleum reservoirs across the globe. Tight formations such as shale, tight sandstone, and low-permeability carbonates typically have extremely low matrix permeability, often in the nanodarcy range. These reservoirs cannot yield economic production rates without stimulation, making hydraulic fracturing a critical technology in modern oil and gas field development.
The method involves the high-pressure injection of fracturing fluid into the reservoir to create fractures in the rock matrix. These fractures are then propped open with solid materials called proppants to maintain a conductive pathway for hydrocarbon flow. Over the last two decades, hydraulic fracturing has evolved significantly in terms of fluid systems, proppant technologies, fracture modeling, and monitoring. As a result, it has become the backbone of shale gas, tight oil, and other unconventional resource plays.
This article explores the engineering foundation, operational methods, and real-world challenges of hydraulic fracturing in tight formations, aiming to provide a practical understanding of how this technology enables energy production from complex and otherwise uneconomic reservoirs.
---
2. Reservoir Properties and Stimulation Necessity
Tight reservoirs are defined by their extremely low permeability and restricted pore throat sizes, which inhibit natural fluid migration toward the wellbore. Unlike conventional reservoirs, where hydrocarbons flow through well-connected pore networks, tight formations rely almost entirely on artificial stimulation for production. Fractures not only improve flow paths but also connect isolated pore systems to the wellbore.
Several key properties must be considered when designing a fracture treatment in tight reservoirs. These include formation mineralogy, brittleness index, natural fracture networks, in-situ stress regimes, and geomechanical properties such as Young’s modulus and Poisson’s ratio. Typically, the minimum horizontal stress determines the direction of fracture propagation. In horizontal wells, fractures grow vertically and extend outward in a transverse pattern relative to the wellbore.
Furthermore, tight reservoirs may contain natural fractures or bedding planes that interact with induced fractures to form complex networks. This complexity can either enhance stimulation by increasing the stimulated rock volume or hinder proppant placement if uncontrolled. Therefore, proper geological and geomechanical analysis is fundamental in determining the stimulation strategy.
---
3. Fracturing Fluids and Chemical Additives
Fracturing fluid systems are carefully engineered to perform several roles during treatment: initiating fractures, transporting proppants, reducing friction, controlling leak-off, and minimizing formation damage. The fluid must be compatible with the reservoir rock and fluids while maintaining the ability to carry proppant deep into the fracture.

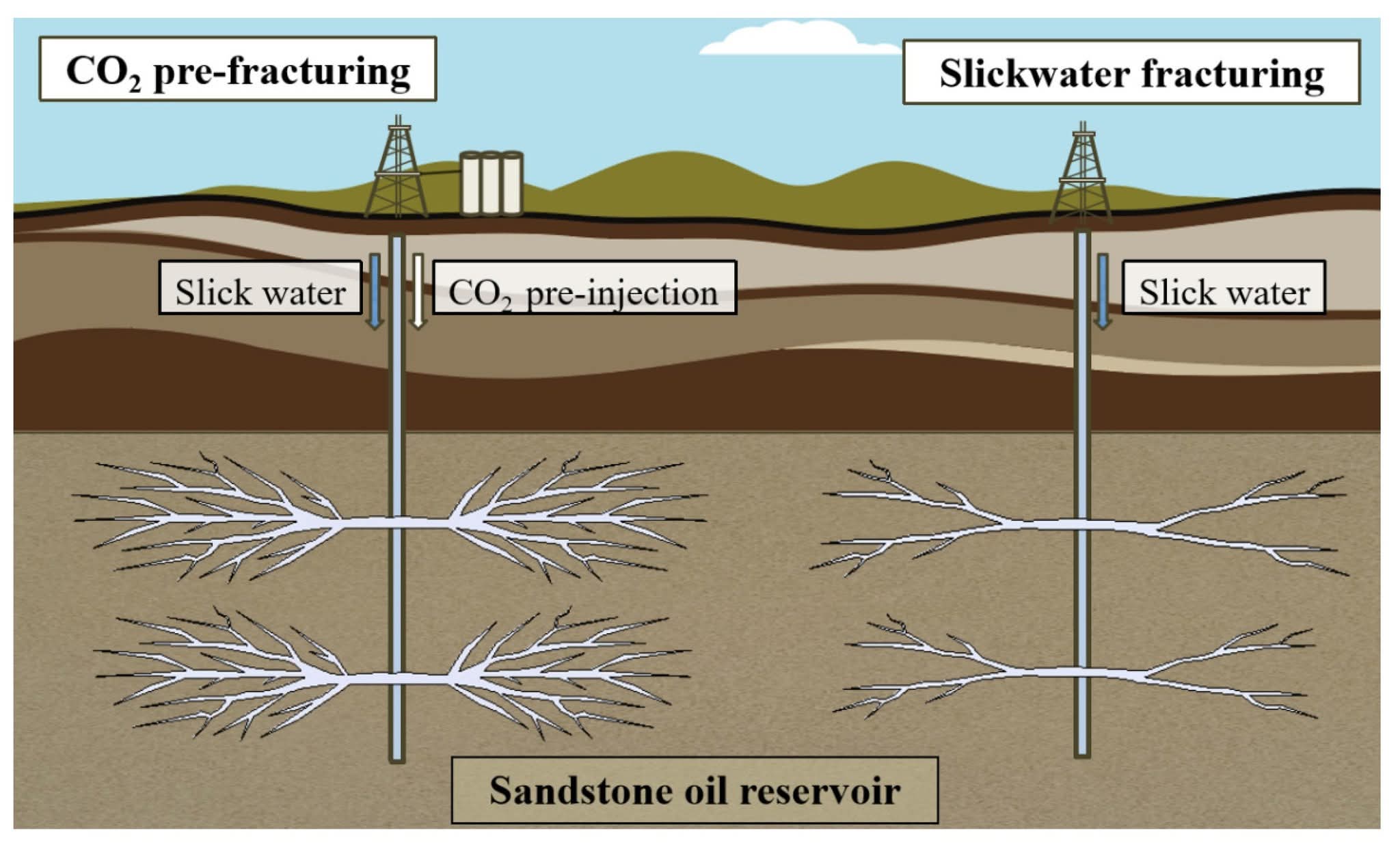

Slickwater fluids, which consist primarily of water and friction reducers, are commonly used in shale plays. They allow for high pump rates and low formation damage but have limited proppant-carrying capacity. Gelled fluids, which use polymers like guar gum to increase viscosity, are preferred in formations with higher closure stress or deeper targets, as they improve proppant suspension. Crosslinked gels offer superior thermal stability and viscosity retention at high temperatures.
Chemical additives further enhance fluid performance. Common components include biocides to prevent bacterial growth, scale inhibitors, surfactants, clay stabilizers, and breakers that degrade the gel after the treatment. The goal is to achieve maximum fracture conductivity with minimal environmental and reservoir damage. The selection and formulation of these fluids are customized for each reservoir based on laboratory testing and field experience.
---
4. Proppants and Conductivity Enhancement
Proppants are solid materials used to maintain fracture openings once the treatment pressure is removed. The performance of a proppant is measured by its ability to resist crushing and embedment under reservoir stress while maintaining high conductivity. Proppants must be chemically inert, thermally stable, and mechanically strong.
The three primary categories of proppants are untreated sand, resin-coated sand, and ceramic proppants. Sand is the most economical and is sufficient in low to moderate stress environments. Resin-coated sand reduces proppant flowback and improves crush resistance. Ceramic proppants offer high strength and are used in deep wells or formations with high closure stress.
The size and shape of the proppant also influence fracture conductivity. Smaller mesh sizes offer better permeability, while spherical particles reduce flow resistance. Proppant selection and concentration are closely tied to fluid type, reservoir properties, and desired fracture geometry. Placement strategies must ensure even distribution along the fracture and avoid issues like screenout or premature settling.
---
5. Fracture Design and Field Execution
Fracture design involves predicting and controlling fracture geometry, proppant transport, and fluid efficiency to ensure effective stimulation. Design engineers use reservoir data, stress profiles, and rock mechanics to simulate how fractures will propagate. Key design parameters include fluid volume, injection rate, proppant mass, stage spacing, and perforation clusters.
Fracture modeling software allows engineers to simulate the treatment and optimize parameters before field implementation. These models are calibrated using field data from diagnostic fracture injection tests (DFITs), pressure response analysis, and real-time monitoring.
In field operations, hydraulic fracturing is typically performed in multiple stages, especially in horizontal wells. Each stage targets a specific interval along the lateral wellbore. The plug-and-perf method is widely used, involving perforating clusters followed by fracturing, and isolating each stage with composite plugs.
Monitoring tools such as microseismic imaging, fiber optic sensors, and pressure gauges provide real-time feedback on fracture propagation and reservoir response. These data help engineers validate models, make adjustments during treatment, and evaluate the effectiveness of the stimulation.
---
6. Challenges, Environmental Concerns, and Best Practices
Despite its widespread application, hydraulic fracturing faces significant technical and environmental challenges. One of the primary concerns is water management. Fracturing operations consume large volumes of water, and the handling of flowback and produced water presents logistical and environmental risks. Recycling and reuse of fracturing water have become best practices in many regions, reducing freshwater consumption and disposal volumes.
Formation damage caused by fluid leak-off or chemical incompatibility is another challenge. In tight formations, the damage is harder to reverse due to low permeability. The use of breakers and clean fluids is critical to minimize residue and restore permeability.
Induced seismicity, particularly when fluids are injected near faults, has raised concerns in several regions. Monitoring seismic activity and adjusting pumping strategies can help mitigate this risk. Surface spills, casing failures, and groundwater contamination are other areas of concern, emphasizing the importance of well integrity and responsible operational practices.
Best practices include detailed pre-job planning, fluid compatibility testing, proper well construction, and post-frac flowback management. Regulators and operators alike are moving toward more sustainable practices, including green chemical usage, digital monitoring, and lower-emission fracturing fleets.
---
7. Conclusion
Hydraulic fracturing has emerged as a vital technology for unlocking the potential of tight oil and gas reservoirs worldwide. By enhancing reservoir connectivity through artificial fractures, it enables economic hydrocarbon production from rocks that were once considered uneconomical. The integration of geomechanical analysis, fluid engineering, proppant selection, and digital fracture modeling has made the process more efficient and predictable.
While the technique has evolved significantly, it continues to face challenges related to environmental sustainability, water usage, and public perception. Addressing these concerns requires innovation, transparency, and commitment to best practices. The use of real-time data, AI-driven optimization, and environmentally responsible chemicals marks the next phase in the evolution of hydraulic fracturing.
As global demand for cleaner and more efficient energy sources continues, hydraulic fracturing will play a key role in ensuring energy security, particularly in the transition period toward low-carbon solutions. The industry's focus must remain on balancing resource extraction with environmental stewardship, operational excellence, and social responsibility.
